Remote Motors
Why use a remote motor rather than an internal motor?
You may require bespoke performance
A remote motor can be placed in any number of positions away from the extractor and different units are available.
The remote motors shown in this section are designed to work with the Westin Product range of ducted out hoods.
It is also possible to use a combination of motors to achieve higher performance regardless of the length or complicated nature of the duct run.
The Westin Bespoke consultation service provides extraction solutions using both internal and inline motors, and those with more than one remote motor.
For example:
Contact our Customer Services Team who will be pleased to give you more information.
Inline motor
Located part way along the ducting, these motors need to be accessible for servicing so are often concealed in cupboards or sited in utility rooms.
Wall mounted motor
These motors are designed to be placed on the external walls of the property and are weather proof.
Inline plinth motor
Specifically designed for use with downdraft extractors.

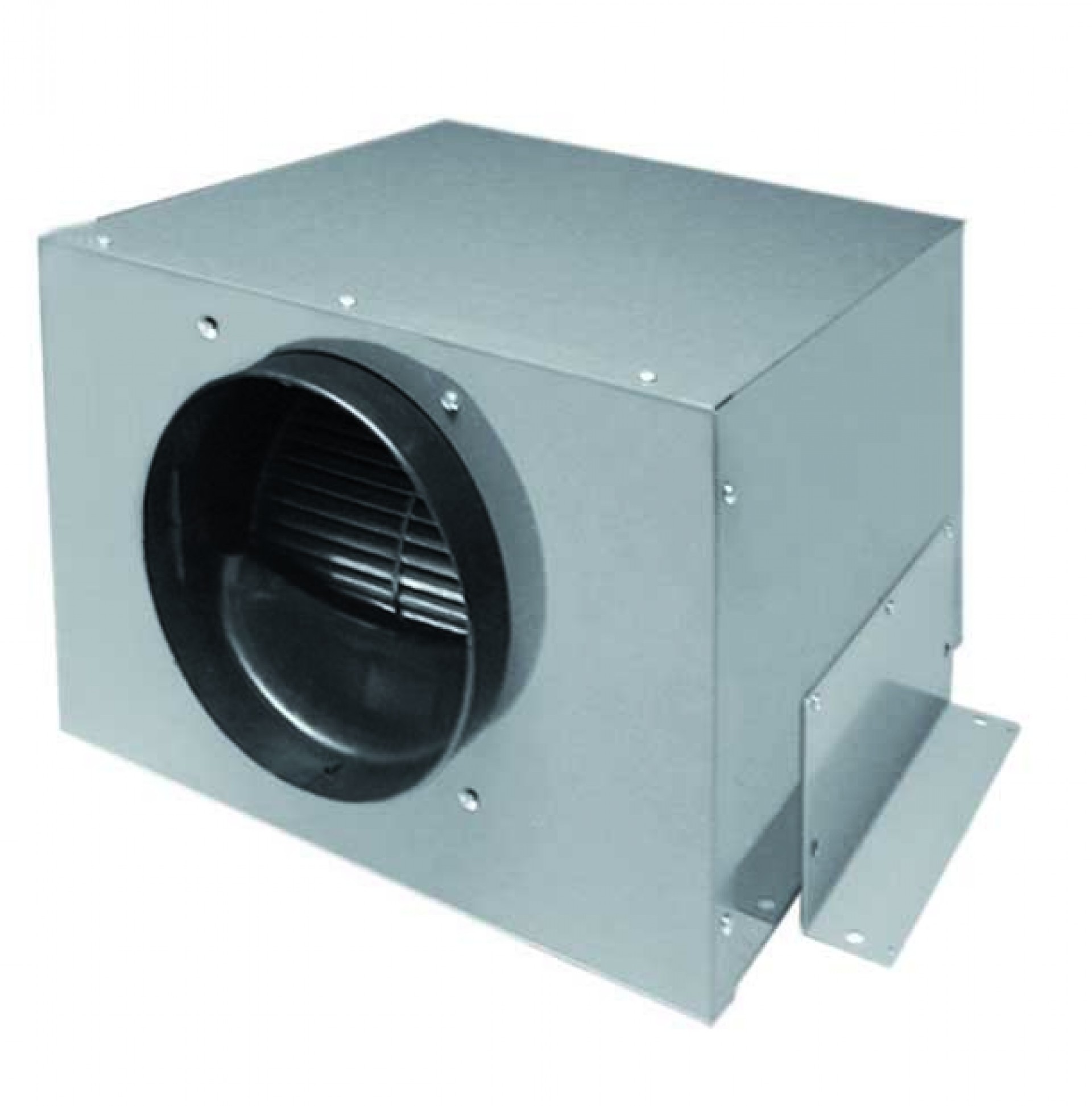

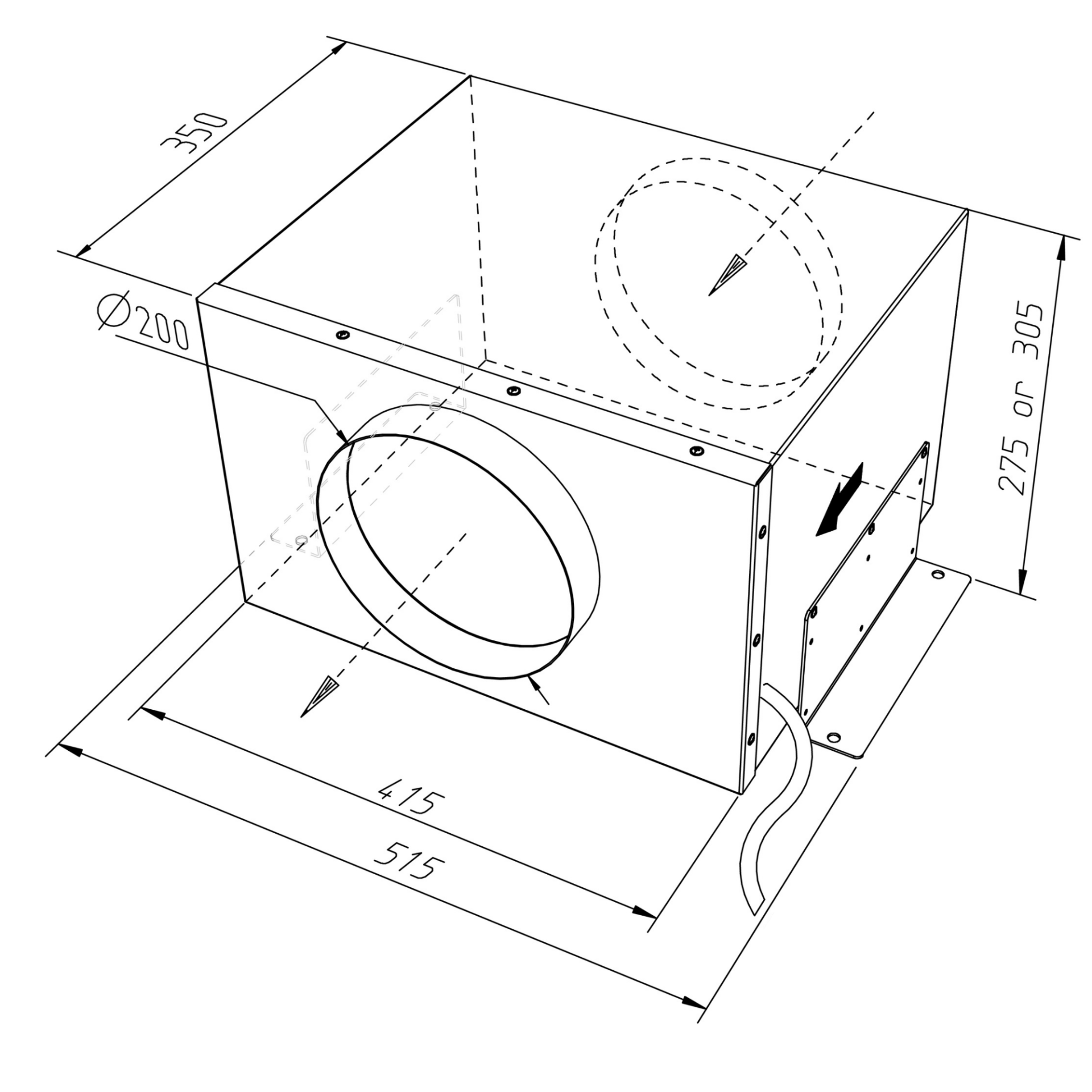

SEM8 – inline motor
| Duct size: | 200mm (or 150mm via duct reducer) |
| Free air performance: | 1100m3/hr (150mm duct) 1300m3/hr (200mm duct) |
| Width: | 350mm |
| Depth: | 400mm |
| Height: | 400mm |
SEM7 – wall mounted motor
| Duct size: | 200mm (or 150mm via duct reducer) |
| Free air performance: | 1500m3/hr (150mm duct) 1700m3/hr (200mm duct) |
| Width: | 465mm |
| Depth: | 240mm |
| Height: | 570mm |
SEM13 – inline plinth motor
| Duct size: | 220 x 90mm flat channel |
| Free air performance: | 750m3/hr |
| Width: | 355mm |
| Depth: | 225mm |
| Height: | 270mm |
